Legacy systems are the backbone of many organizations, but they often become a bottleneck for innovation and growth. The Strangler Fig pattern offers a strategic approach to gradually modernize these systems without the catastrophic risks associated with "big bang" replacements.

The Biological Foundation: Understanding Strangler Figs

The strangler fig pattern gets its name from a fascinating natural phenomenon observed in tropical rainforests around the world. Strangler figs (various species of Ficus) represent one of nature's most dramatic examples of gradual replacement and adaptation.

The Life Cycle of Strangler Figs

The strangler fig's life cycle mirrors the software migration pattern perfectly:

  1. Germination: A seed lands in the canopy of a host tree, often deposited by birds or other animals
  2. Initial Growth: The young fig grows as an epiphyte, initially depending on the host for support and structure
  3. Root Development: Aerial roots grow down the trunk to reach the ground, establishing independent nutrition
  4. Gradual Encirclement: The fig slowly grows around the host tree's trunk, forming a living lattice
  5. Competition and Replacement: Over decades, the fig outcompetes the host for sunlight and nutrients
  6. Final Replacement: Eventually, the host tree dies and decomposes, leaving a hollow but structurally sound fig tree

This process can take 50-150 years, demonstrating nature's preference for gradual, sustainable change over sudden disruption. The strangler fig doesn't destroy its host immediately—instead, it grows symbiotically until it can survive independently, then gradually takes over all the host's functions.

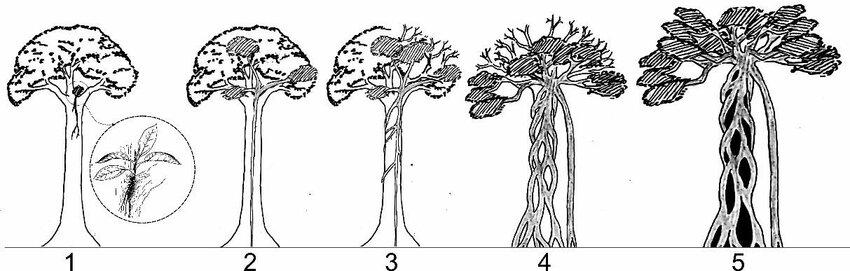

Strangler Fig Life Cycle

Natural Wisdom for Software Architecture

The biological process teaches us several key principles:

  • Symbiotic Beginning: New growth starts alongside, not in place of, existing structures
  • Gradual Independence: Dependency on the host decreases over time as new capabilities develop
  • Structural Integrity: The host remains functional throughout the replacement process
  • Natural Completion: The transition happens organically when the new system is fully capable
  • Stronger Result: The final structure is often more robust than either system alone

Martin Fowler's Software Metaphor

In 2004, renowned software architect Martin Fowler eloquently captured this biological process as a software architecture pattern. Writing about legacy system modernization, he observed:

"One of the natural wonders of this area are the huge strangler figs. They seed in the upper branches of a tree and gradually work their way down the tree until they root in the soil. Over many years they grow into fantastic and beautiful shapes, meanwhile strangling and killing the tree that was their host."

Historical Context

Fowler's insight came during a period when enterprise software was grappling with the challenges of modernizing massive monolithic systems built in the 1980s and 1990s. The dot-com boom had created pressure to modernize quickly, leading to numerous high-profile "big bang" migration failures.

Observing the natural world during a trip to Australia, Fowler recognized that the strangler fig's gradual replacement strategy offered a superior alternative to the disruptive "rip and replace" approaches that were failing across the industry.

Key Insights from Fowler's Pattern

Fowler's genius was recognizing that successful legacy migrations follow natural patterns:

  1. Start Small and Specific: Begin with well-defined boundaries, just as the fig starts with a single seed
  2. Maintain Dual Systems: Both old and new systems operate simultaneously during transition
  3. Route Traffic Gradually: Slowly redirect users to new functionality as it becomes available
  4. Remove Old Components: Only retire legacy parts when they're fully replaced and no longer needed

The Pattern's Evolution

Since Fowler's original description, the pattern has evolved to incorporate modern practices:

  • Feature Flags: Dynamic routing between old and new implementations
  • API Gateways: Sophisticated traffic routing and version management
  • Microservices: Granular decomposition of monolithic systems
  • Cloud Migration: Infrastructure modernization alongside application updates
  • DevOps Practices: Continuous integration and deployment supporting incremental changes

Big Bang vs Strangler Fig: A Critical Comparison

The fundamental difference between traditional "big bang" migrations and the Strangler Fig pattern lies in their approach to risk, timing, and value delivery:

Big Bang vs Strangler Fig

Big Bang Migration: High Risk, High Failure

The traditional "big bang" approach attempts to replace the entire legacy system in one massive effort:

Characteristics:

  • All-or-nothing replacement: Complete system overhaul in a single release
  • Extended development cycles: Months or years without delivering value to users
  • High coordination overhead: Multiple teams working on interdependent components
  • Binary outcomes: Either complete success or total failure

Why Big Bang Migrations Fail:

  1. Complexity Overload: Attempting to handle all system complexity simultaneously
  2. No Intermediate Feedback: No validation until the entire system is complete
  3. Resource Exhaustion: Teams become overwhelmed managing interdependencies
  4. Scope Creep: Requirements change during extended development periods
  5. Integration Hell: Components developed in isolation don't work together

Statistical Reality:

  • 60-70% failure rate: Industry studies consistently show high failure rates
  • Average cost overrun: 200-300% of original budget
  • Timeline extensions: Projects typically take 2-3x longer than planned
  • Business disruption: Extended periods of reduced functionality or downtime

Strangler Fig Pattern: Gradual, Sustainable Success

The Strangler Fig pattern takes a fundamentally different approach:

Core Principles:

  1. Gradual phase-by-phase migration: Replace one component at a time
  2. Continuous delivery of value: Users benefit throughout the migration process
  3. Feedback loop enabling learning and adaptation: Each phase informs the next
  4. Parallel operation of old and new systems: Zero downtime and safety nets

Success Factors:

  • Reduced blast radius: Failures affect only migrated components
  • Continuous validation: Each phase can be tested and validated independently
  • Stakeholder confidence: Visible progress maintains business support
  • Risk mitigation: Easy rollback of specific components if needed

Real-World Case Study: .NET Framework 4.5 to .NET 8 Migration

Let me share a recent succes where we modernized a legacy system that's over 20 years old, originally built on .NET Framework 4.5, and migrated it to .NET 8 using the Strangler Fig pattern.

The Challenge

Our legacy system presented typical modernization challenges:

  • Outdated Framework: .NET Framework 4.5 (released in 2012)
  • Monolithic Architecture: Over 500,000 lines of tightly coupled code
  • Legacy Dependencies: Third-party libraries incompatible with modern .NET
  • Business Critical: System processing $50M+ in transactions monthly
  • Knowledge Gaps: Original architects no longer with the company
  • Technical Debt: 15+ years of quick fixes and workarounds

How We Applied the Strangler Fig Pattern

Facade smooth migration

Our migration strategy centered on implementing a routing façade that would gradually shift traffic from legacy to modern components.

Phase 1: Façade Introduction We introduced a routing layer that initially directed all requests to the existing legacy system. This façade acted as an intelligent proxy, monitoring traffic patterns and preparing for gradual redirection.

Phase 2: Progressive Transition As new components became available, the façade began routing specific requests to modern implementations while maintaining legacy system handling for unchanged functionality. The façade gradually increased traffic to modernized components as they proved stable and performant, reducing dependency on legacy systems.

Final State: Legacy Retirement Once all functionality was successfully migrated and validated, legacy components were retired and the façade routing simplified to direct all traffic to the modern system.

This approach ensured zero downtime throughout the migration while providing built-in rollback capabilities and risk mitigation.

Conclusion

The Strangler Fig pattern, inspired by nature's own gradual replacement process and formalized by Martin Fowler, provides a proven approach for legacy system modernization. Our real-world .NET Framework to .NET 8 migration demonstrates that this biological wisdom translates directly to successful software transformation.

By understanding the biological foundation, applying Fowler's insights, and learning from practical implementation experience, organizations can successfully modernize even the most complex legacy systems while maintaining business continuity and delivering continuous value.

Key Takeaways:

  • Nature knows best: Gradual replacement is more sustainable than sudden disruption
  • Start small, think big: Begin with clear boundaries and expand systematically
  • Embrace duality: Running old and new systems simultaneously provides safety and flexibility
  • Measure everything: Continuous feedback enables adaptation and improvement
  • Value over speed: Successful migration prioritizes business continuity over timeline

Whether you're modernizing a decades-old enterprise system or simply updating a few components, the Strangler Fig pattern provides a roadmap for transformation that minimizes risk while maximizing value delivery.
